5W VS 12W VS 20W VS 30W VS 35W iPhone Charger | ZONSAN

~~2022-12-14~~ 5W VS 12W VS 20W VS 30W VS 35W Apple iPhone Charger Charging Test

Apple's charging speed has always been great, but the charging power has only increased by 10W in four or five years. However, most mainstream Android phones are 65W, 100W and 120W, and it only takes 20-40 minutes to fill a 4500mAh or 5000mAh battery.

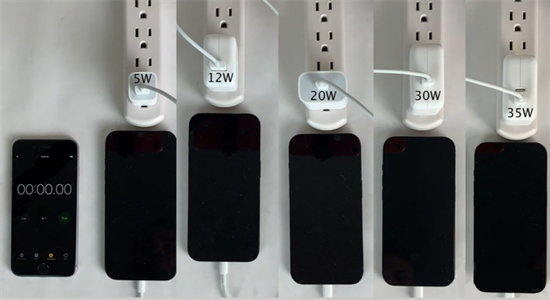

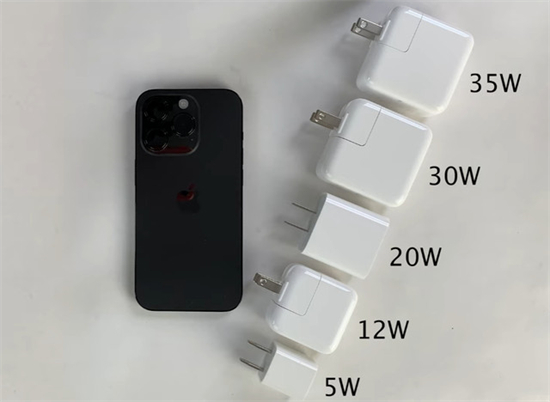

The iPhone 14Pro, released in 2022, has a battery capacity of 3200mAh, and the official claim is that the machine supports 20W wired charging, but the maximum power is actually 27W. And this article is going to test the charging of five original Apple iPhone chargers: 5W, 12W, 20W, 30W and 35W, to see which is the fastest and which is the slowest.

It should be noted that everyone charges in different scenarios. Some users may be resting screen charging, some may be playing while charging. So the data is for reference only. Also tested iPhone 14Pro with charging protection turned off.

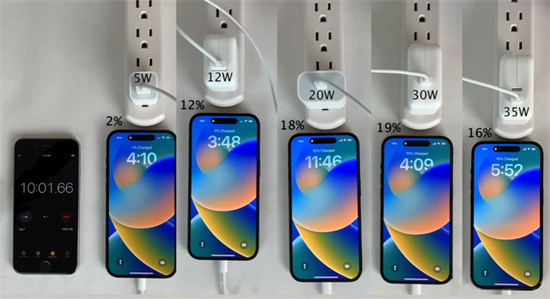

Charging for 10 minutes

First charge to 10 minutes, the performance of the five iPhone chargers are as follows.

5W iPhone charger: 2% power
12W iPhone charger: 12% power
20W iPhone charger: 18% power
30W iPhone charger: 19% power
35W iPhone charger: 16% power

Charging for 30 minutes

Charging proceeded to 30 minutes with the following results.

5W iPhone charger: 15% power
12W iPhone charger: 37% power
20W iPhone charger: 57% power
30W iPhone charger: 59% power
35W iPhone charger: 57% power

20w vs 12w iphone charger

When the test came to 30 minutes, we could find that iPhone 14Pro with 35W iPhone charger did not lead, instead, the 30W iPhone charger performed great, followed by the 20W iPhone charger.

Charging for 1 hour

After charging for 1 hour, the specific results are as follows.

5W iPhone charger: 31% power
12W iPhone charger: 71% power
20W iPhone charger: 87% power
30W iPhone charger: 88% power
35W iPhone charger: 87% power

20w vs 30w charger iphone

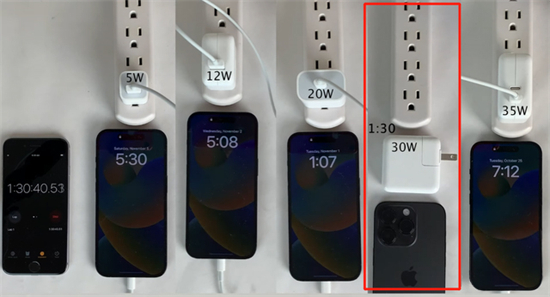

Charging 1 hour and 30 minutes

Charging came to 1 hour and 30 minutes, and the iPhone 14Pro using the 30W iPhone charger was the first to be fully charged. The performance of the remaining five iPhone chargers at this time is as follows.

5W iPhone charger: 48% power
12W iPhone charger: 93% power
20W iPhone charger: 99% power
30W iPhone charger: 100% power
35W iPhone charger: 99% power

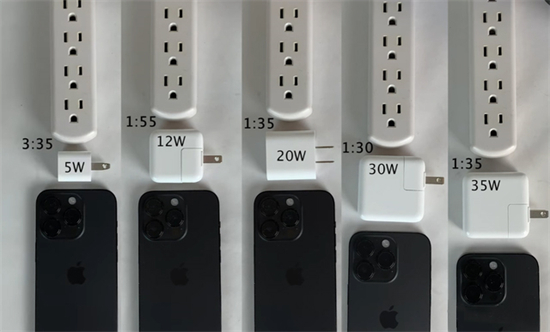

Final Test Results

The total test time is 3 hours and 35 minutes, and the final results are as follows.

5W iPhone charger: 3 hours and 35 minutes
12W iPhone charger: 1 hour and 55 minutes
20W iPhone charger: 1 hour and 35 minutes
30W iPhone charger: 1 hour and 30 minutes
35W iPhone charger: 1 hour and 35 minutes

The comparison shows that the difference between using 20W iPhone charger, 30W iPhone charger and 35W iPhone charger is not too big, basically between 1%-2%, and the difference in the final charging time is only about 5 minutes. So if you are using a 20W iPhone charger to charge your iPhone 14Pro, there is no need to switch to a 30W or 35W iPhone charger.

It should also be noted that the iPhone chargers used in the test are all official Apple, and third-party iPhone charger data may vary.

Summary

There are actually a variety of charger scenarios in real life. Although the original Apple charger with a single port is also useful, it can no longer meet the needs of multiple digital devices charging at the same time. So most of the time, people will also choose some third-party chargers.

But we must understand that the third party charger factory is also to find the regular. The strength of the factory can be judged by the quality management system, product certification and so on.

Zonsan is a factory that has passed the BSCI/ICS/ISO9001 quality management system. And zonsan has more than one hundred models of chargers that support OEM, and the products have also passed CE, FCC, KC, CB, REACH, ETL and other certifications. If you are looking for a competent charger OEM factory, you can contact zonsan.
